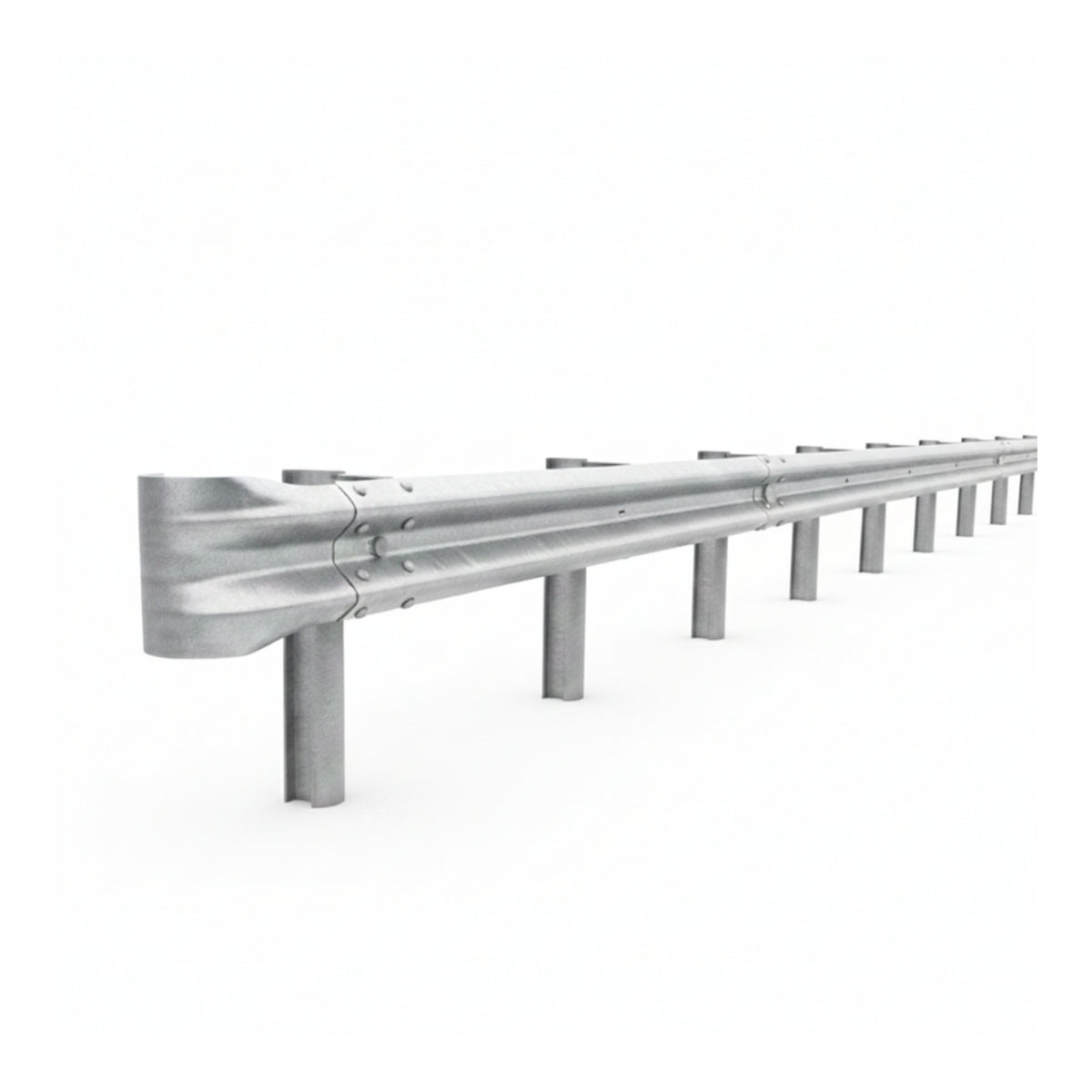

W-Beam Guardrail System
W-Beam Guardrail System
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
Product Specifications
| Function | Roadside Safety and Vehicle Containment |
| Rail Profile | Standard W-Beam (Two-Wave) |
| Material | Hot Dip Galvanized Steel |
| Post Type | C-Post / U-Post (Driven or Concrete Mounted) |
| Post Spacing | Standard 3.81m or 1.905m (can vary by specific project standards) |
| End Treatment | Fishtail End / Buffer End (As shown in image) |
| Coating | Hot Dip Galvanized (Zinc Coating > 550 g/m²) |
| Steel Grade | Q235B / Q345B (Standard Structural Steel) |
| Rail Thickness | 3mm (Standard) / 4mm (Heavy Duty) |
| Crash Test Standard | AASHTO M180 / JT/T 281-2007 |
| Customizable features | Post Length, Rail Thickness, Galvanization Thickness, End Terminal Type |
Additional information are available upon request. Actual product may have slight variations in contrast to this image. Product is in continuous development therefore minor changes can appear without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
