MASALTA

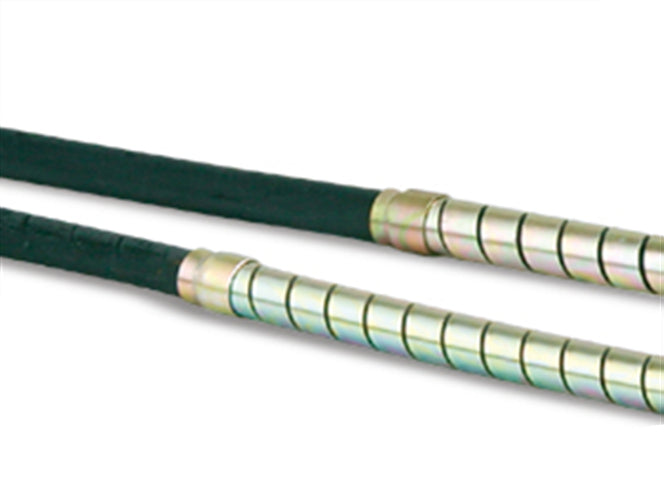

Vibrator Poker MVP/MVS
Vibrator Poker MVP/MVS
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
MASALTA internal concrete vibrators (MVP/MVS series) use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head.
Features
- MVP Vibrator Poker - Top of the range poker head suitable for professional application
- MVS Vibrator Poker - Economical alternative manufactured along Masalta quality standard
- Distinct Couplings Available
- Internal Concrete Vibrators MVP|MVS series - Pendulum principle, ensure high reliability and extend service life
Technical Specification
| Model | MVS 32 | MVP/MVS 38 | MVP/MVS 45 | MVP/MVS 50 | MVS 70 |
| Vibrator Head Dia×Length mm(in) | 32×442(1.3×17.4) | 38×442(1.5×17.4) | 45×442(1.7×17.4) | 50×442(1.9×17.4) | 70×442(2.8×17.4) |
| Vibrator Amplitude mm(in) | 1(0.039) | 1.2(0.047) | 1.25(0.049) | 1.3(0.051) | 1.4(0.055) |
| Frequency Hz | 225 | 225 | 225 | 225 | 200 |
| Revolution of Flexible Shaft rpm | 3000-3600 | 3000-3600 | 3000-3600 | 3000-3600 | 3000-3600 |
| Flexible Hose Length m(ft) | *Standard 6m(20) Maximum 8m(26) | *Standard 6m(20) Maximum 8m(26) | *Standard 6m(20) Maximum 8m(26) | *Standard 6m(20) Maximum 8m(26) | *Standard 6m(20) Maximum 8m(26) |
| Approx Weight kg(lb) | 11(24) | 12(27) | 13(29) | 16(35) | 17(38) |
Specifications from the manufacturer, MASALTA (masalta.com.cn). Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
