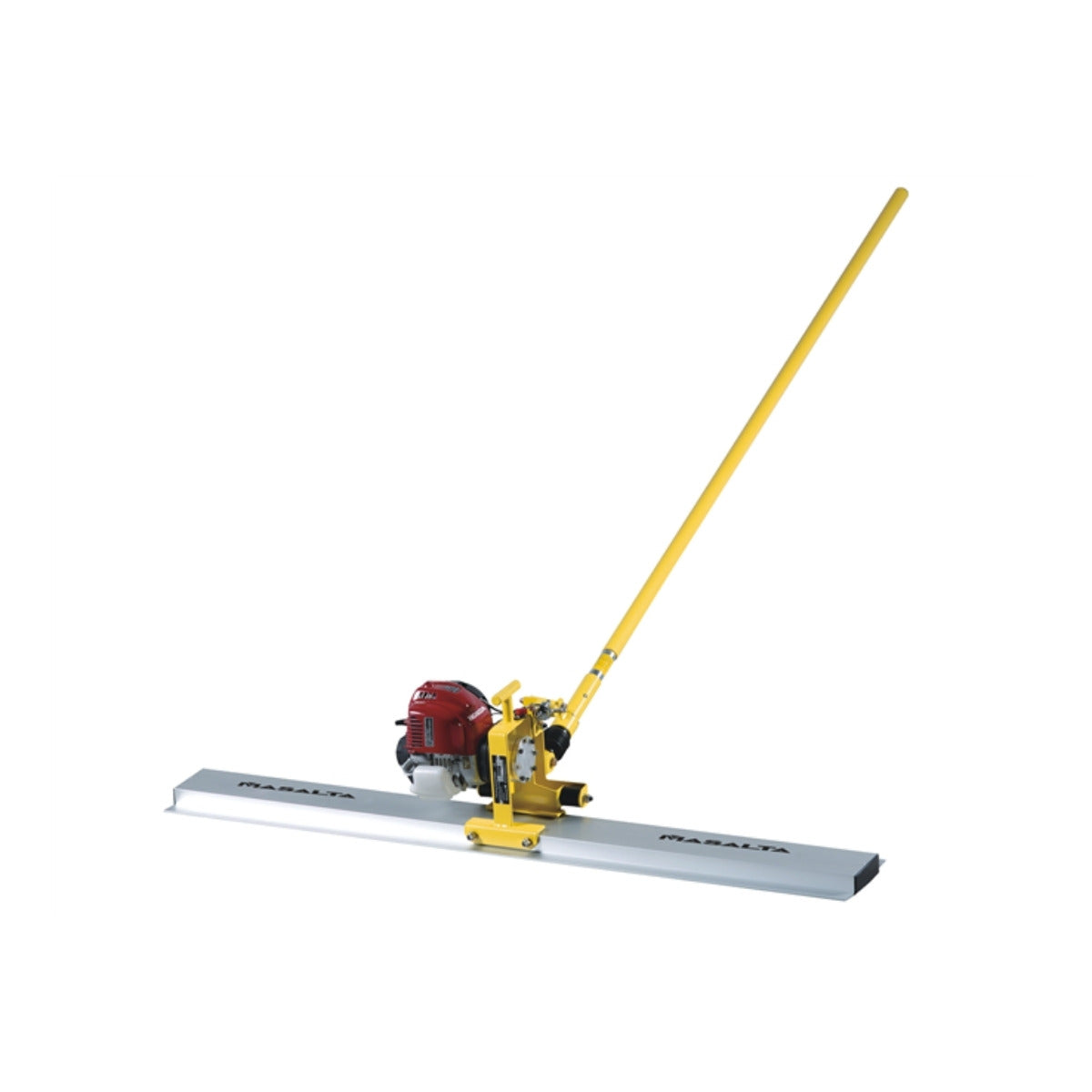

Vibrating Screed MMD Series
Vibrating Screed MMD Series
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
Vibrating screed, concrete screeding vibrator, oscillation mechanism to allow work in both directions, produce very accurate level without the need of guiding rails. It is designed to reduce time spent in leveling and economic finishing of large areas of concrete.
Features
- The blade produced from hollow section aluminum extrusion with convex profiled sole, is specially designed for the pushing and pulling of concrete.
- Blade angle is easily controlled(for forward/backward movement) by a blade pitch control.
- Clip together handle offer a maximum reach of 5.4 meters with 3 extension sections.
- Easy cleaning and transportation.
Technical Specification
| Model | MMD-2 | MMD-3 | MMD-4 |
| Engine Type | Chinese | Robin EH025 | Honda GX25 |
| Power Kw(hp) | 0.8(1.1) | 0.81(1.1) | 0.72(1.0) |
| Operation Mass Kg(lb) | 11(24) | 10.5(23) | 10(22) |
| Handle Length m(ft) | 1.8(6)-5.4(18) | 1.8(6)-5.4(18) | 1.8(6)-5.4(18) |
Blades
| Model | MMDB-1 | MMDB-2 | MMDB-3 | MMDB-4 |
| Length m(ft) | 1.5(5) | 2(6.6) | 2.5(8.2) | 3(9.8) |
| Weight kg(lb) | 6.2(13.7) | 8.3(18.3) | 10.3(22.7) | 12.4(27.3) |
Specifications from the manufacturer, MASALTA (masalta.com.cn). Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
