MASALTA Steel Bar Bender GW40A / GW42D / GW45E
MASALTA Steel Bar Bender GW40A / GW42D / GW45E
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability

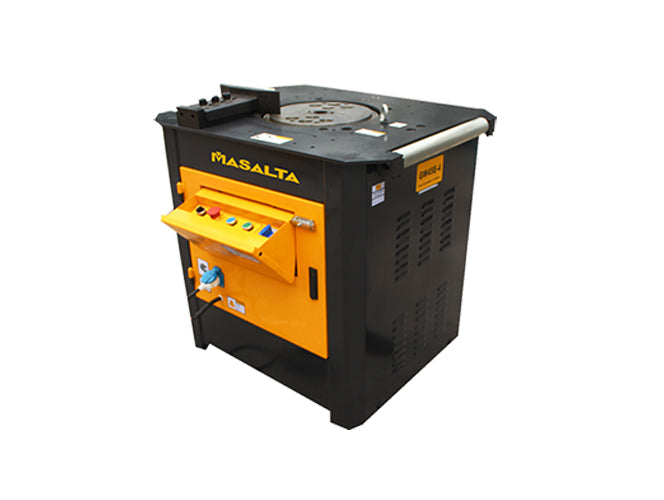

MASALTA electric steel bar (rebar) benders GW40A, GW42D and GW45E for bending reinforcing bar on site and in the yard. GW42D and GW45E are offered in automatic (brake motor) and manual versions.
Technical Specification
| Model | GW40A | GW42D automatic | GW42D manual | GW45E automatic | GW45E manual |
| Bending capacity, steel ≤450 N/mm² mm | 6 - 40 | 6 - 42 | 6 - 42 | 6 - 45 | 6 - 45 |
| Bending capacity, steel ≤650 N/mm² mm | Not published | 6 - 36 | 6 - 36 | 6 - 36 | 6 - 36 |
| Operation | Automatic | Automatic (brake motor) | Manual | Automatic (brake motor) | Manual |
| Motor type | Y 100L2-4 (brake motor) | YEJ 100L2-4 | Y 100L2-4 | YEJ 100L2-4 | Y2 100L-4 |
| Motor power kW | 3 (4-pole) | 3 | 3 | 3 | 3 |
| Motor speed r/min | 1420 | 1440 | 1440 | 1440 | 1440 |
| Disk speed r/min | 8 - 12 | 12 | 12 | 9 - 15 | 9 - 15 |
| Noise at 1 m dB(A) | ≤80 | Not published | Not published | Not published | Not published |
| Weight kg (lb) | 305 (672) | 374 (825) | 320 (705) | 335 (739) | 310 (683) |
| Dimensions L x W x H mm (in) | 930 x 830 x 850 (37 x 33 x 33) | 810 x 760 x 860 (32 x 30 x 34) | 810 x 760 x 860 (32 x 30 x 34) | 890 x 760 x 970 (35 x 30 x 38) | 890 x 760 x 900 (35 x 30 x 35) |
Manufacturer: MASALTA (Masalta Engineering Co., Ltd., China). Specifications from masalta.com.cn (rebar machinery is not in the MASALTA Catalogue 2026). Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
