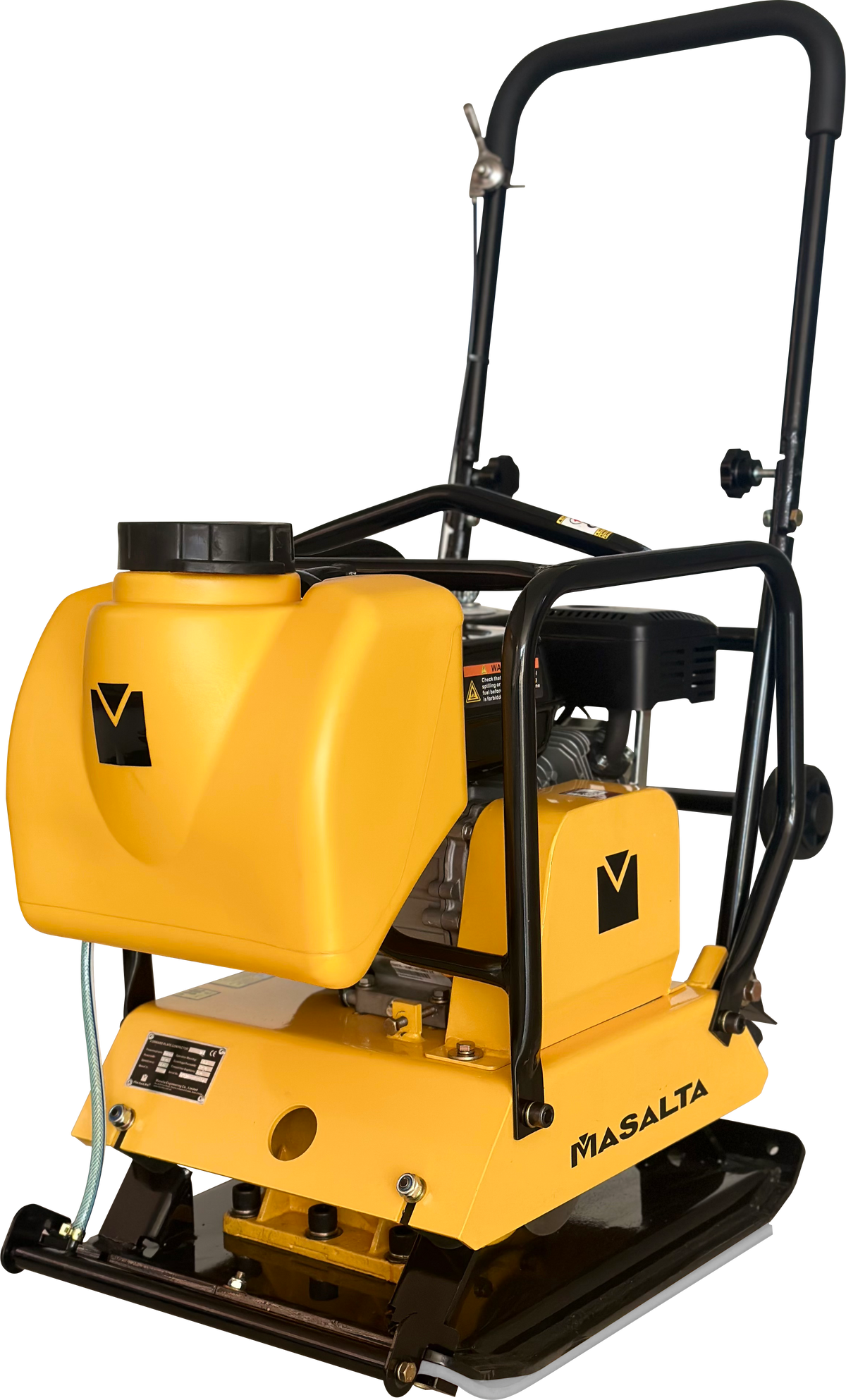

MASALTA Forward Plate Compactor MS95-1 / MS95-2 / MS95-3 / MS95-4 / MS95-5
MASALTA Forward Plate Compactor MS95-1 / MS95-2 / MS95-3 / MS95-4 / MS95-5
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
Compact and suitable for most compaction work, even brick paving compaction.
Features
- Folding handle provides easy storage and transport.
- Protective frame with integrated lifting hooks ensures safe handling and manoeuvrability.
- Centrifugal governor maintains consistent speed under varying loads.
- Low-oil shutdown system automatically stops the engine to prevent damage.
- Side air vents minimize debris entry for cleaner operation.
- Sealed belt cover offers complete protection for clutch and belt components.
- Options: water tank, built-in transportation wheel and rubber mat attachment.
Technical Specification
| Model | MS95-1 | MS95-2 | MS95-3 | MS95-4 | MS95-5 |
| Engine Type | Kama KM173F | Masalta G200F | Robin EX17 | Honda GX160 | Yanmar L48 |
| Energy | Diesel | Petrol | Petrol | Petrol | Diesel |
| Power kW (hp) | 3.7 (5.0) | 4.1 (5.6) | 2.9 (4.0) | 3.6 (4.9) | 3.5 (4.7) |
| Operating Weight, CECE kg (lb) | 102 (224) | 92 (202) | 93 (205) | 92 (202) | 102 (224) |
| Plate Size L x W mm (in) | 550 x 440 (21 x 17) | 550 x 440 (21 x 17) | 550 x 440 (21 x 17) | 550 x 440 (21 x 17) | 550 x 440 (21 x 17) |
| Centrifugal Force kN (lbf) | 15 (3372) | 15 (3372) | 15 (3372) | 15 (3372) | 15 (3372) |
| Frequency Hz (vpm) | 93 (5600) | 93 (5600) | 93 (5600) | 93 (5600) | 93 (5600) |
| Travel Speed m/min (ft/min) | 24 (79) | 24 (79) | 24 (79) | 24 (79) | 24 (79) |
| Compaction Depth cm (in) | 30 (12) | 30 (12) | 30 (12) | 30 (12) | Not published |
| Efficiency m²/h (ft²/h) | 660 (7100) | 660 (7100) | 660 (7100) | 660 (7100) | Not published |
| Dimensions L x W x H mm (in) | 900 x 440 x 995 (35 x 17 x 39) | 900 x 440 x 995 (35 x 17 x 39) | 900 x 440 x 995 (35 x 17 x 39) | 900 x 440 x 995 (35 x 17 x 39) | 900 x 440 x 995 (35 x 17 x 39) |
Manufacturer: MASALTA (Masalta Engineering Co., Ltd., China). Specifications from the MASALTA Catalogue 2026 (printed page 14) and masalta.com.cn. Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
