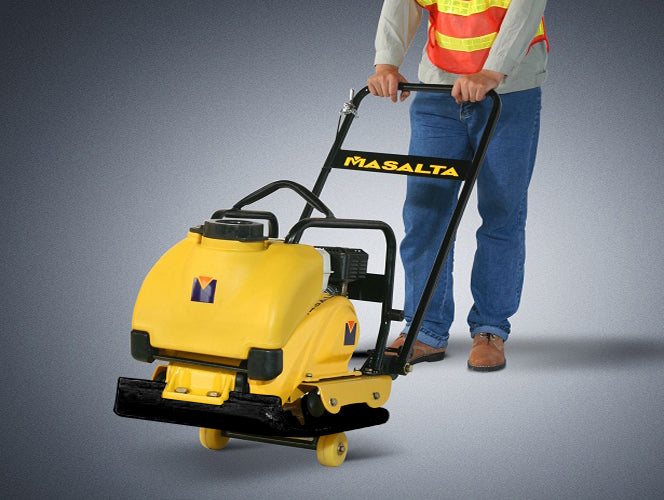

Forward Plate Compactor MS90
Forward Plate Compactor MS90
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
Compact and latest design in plate compactors, suitable for most of compaction work, even brick paving compaction(with optional rubber mat),hot and cold asphalt, when fitted with optional water sprinkler system.
Features
- Built-in wheel for easy transportation
- Throttle control is available as optional
- MSR90 with rubber mat for brick paving compaction is available
- Open plate provides self cleaning
- Ductile iron base plate provides better durability
- Easy-remove water tank with built-in valve and no hose connection available as optional
- Radius base plate for easy access to corners
- Centrally located lifting bar allows easy transportation
- Sealed belt cover to prevent sand and soil in
Technical Specification
| Model | MS90-1 | MS90-2 | MS90-3 | MS90-4 |
| Engine | Air-cooled, 4-cycle, single cylinder | Air-cooled, 4-cycle, single cylinder | Air-cooled, 4-cycle, single cylinder | Air-cooled, 4-cycle, single cylinder |
| Engine Type | Diesle, KAMA KM173F | Petrol, Masalta G200F | Petrol, Robin EX17 | Petrol, Honda GX160 |
| Power Kw(hp) | 3.7(5.0) | 4.1(5.6) | 2.9(4.0) | 3.6(4.9) |
| Operation Mass Kg(lb) | 94(208) | 83(183) | 83(183) | 83(183) |
| Frequency vpm | 5500 | 5500 | 5500 | 5500 |
| Centrifugal Force kN | 13 | 13 | 13 | 13 |
| Compaction Depth cm(in) | 30(12) | 30(12) | 30(12) | 30(12) |
| Travel Speed cm/s(in/s) | 40(16) | 40(16) | 40(16) | 40(16) |
| Efficiency ㎡/hr(ft²/hr) | 660(7100) | 660(7100) | 660(7100) | 660(7100) |
| Plate Size L×W cm(in) | 53×50(21×20) | 53×50(21×20) | 53×50(21×20) | 53×50(21×20) |
| Dimension cm(in) | 110×83×50(43×33×20) | 110×83×50(43×33×20) | 110×83×50(43×33×20) | 110×83×50(43×33×20) |
Specifications from the manufacturer, MASALTA (masalta.com.cn). Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
