MASALTA

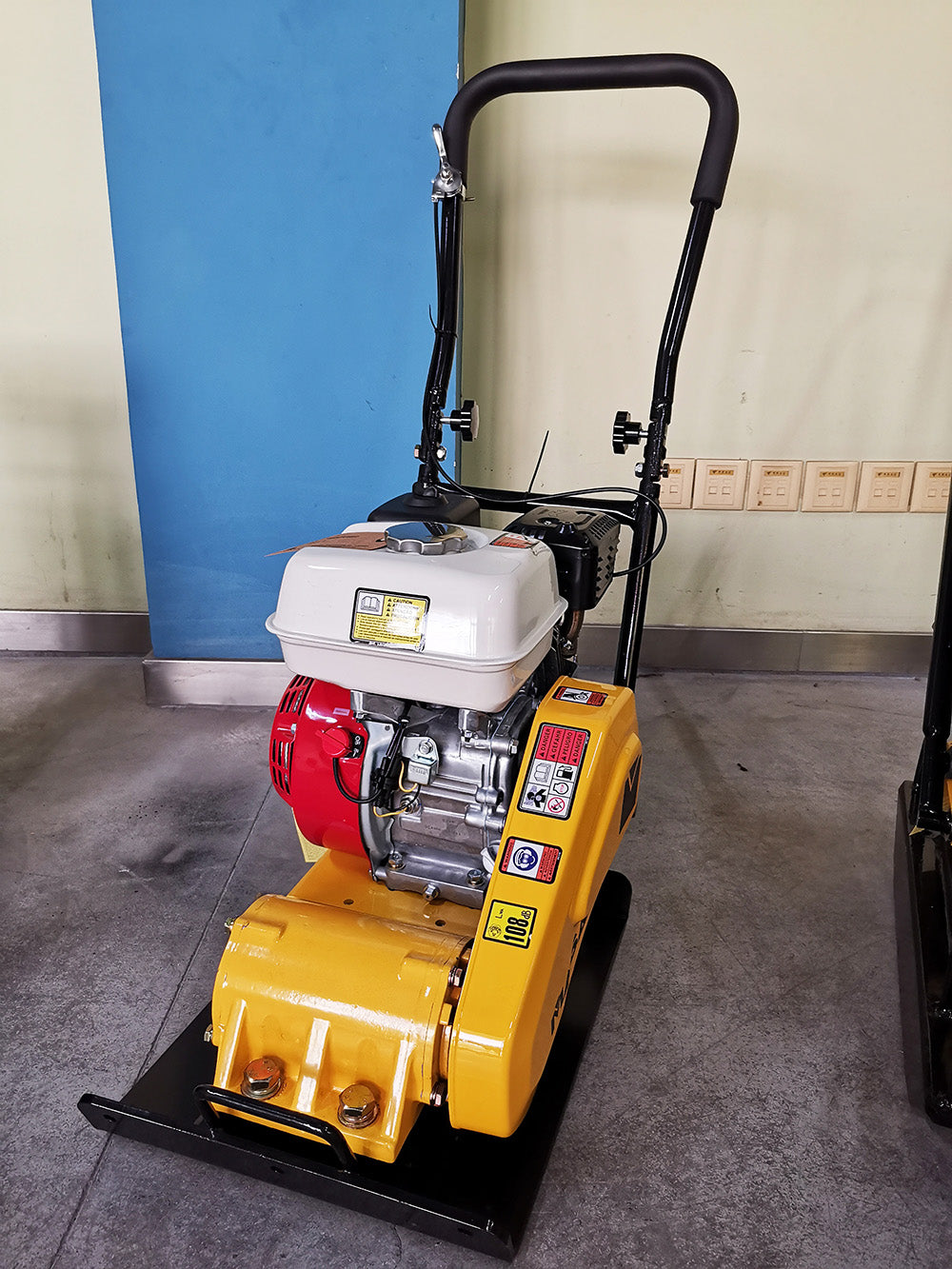

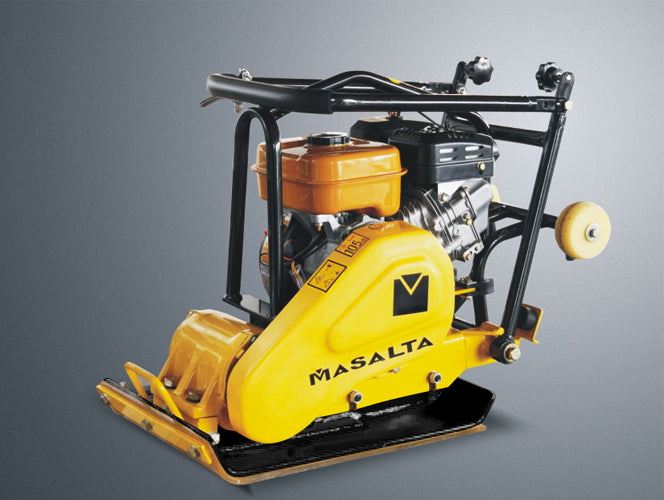

Forward Plate Compactor MS60
Forward Plate Compactor MS60
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
Ideal for sand, gravel and mixer soils in narrow trenches and along foundations, walls and abutments. MSR60 with rubber mat for brick paving compaction is available.
Features
- Radius base plate for easy access to corners
- Rubber mat for brick paving compaction is available
- Built-in wheel for easy transportation
- Foldable handle for easy transportation and stock
- Open plate provides self cleaning
- Sealed belt cover to prevent sand and soil
- Heavy-duty shock mounts reduce vibration to the upper engine handle
- Throttle control is available as optional
- Protective frame is available as optional
Technical Specification
| Model | MS60-2 | MS60-3 | MS60-4 |
| Engine | MASALTA G160F | Robin EX17 | Honda GX160 |
| Power Kw(hp) | 3.6(4.9) | 2.9(4.0) | 3.6(4.9) |
| Operation Mass Kg(lb) | 62(136) | 61(134) | 62(136) |
| Centrifugal Force kN | 10.5 | 10.5 | 10.5 |
| Frequency vpm | 5600 | 5600 | 5600 |
| Travel Speed cm/s(in/s) | 40(16) | 40(16) | 40(16) |
| Compaction Depth cm(in) | 20(8) | 20(8) | 20(8) |
| Efficiency ㎡/hr(ft²/hr) | 450(4800) | 450(4800) | 450(4800) |
| Plate Size L×W cm(in) | 50×36(20×14) | 50×36(20×14) | 50×36(20×14) |
| Dimension cm(in) | 108×40×80(43×16×31) | 108×40×80(43×16×31) | 108×40×80(43×16×31) |
Specifications from the manufacturer, MASALTA (masalta.com.cn). Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
