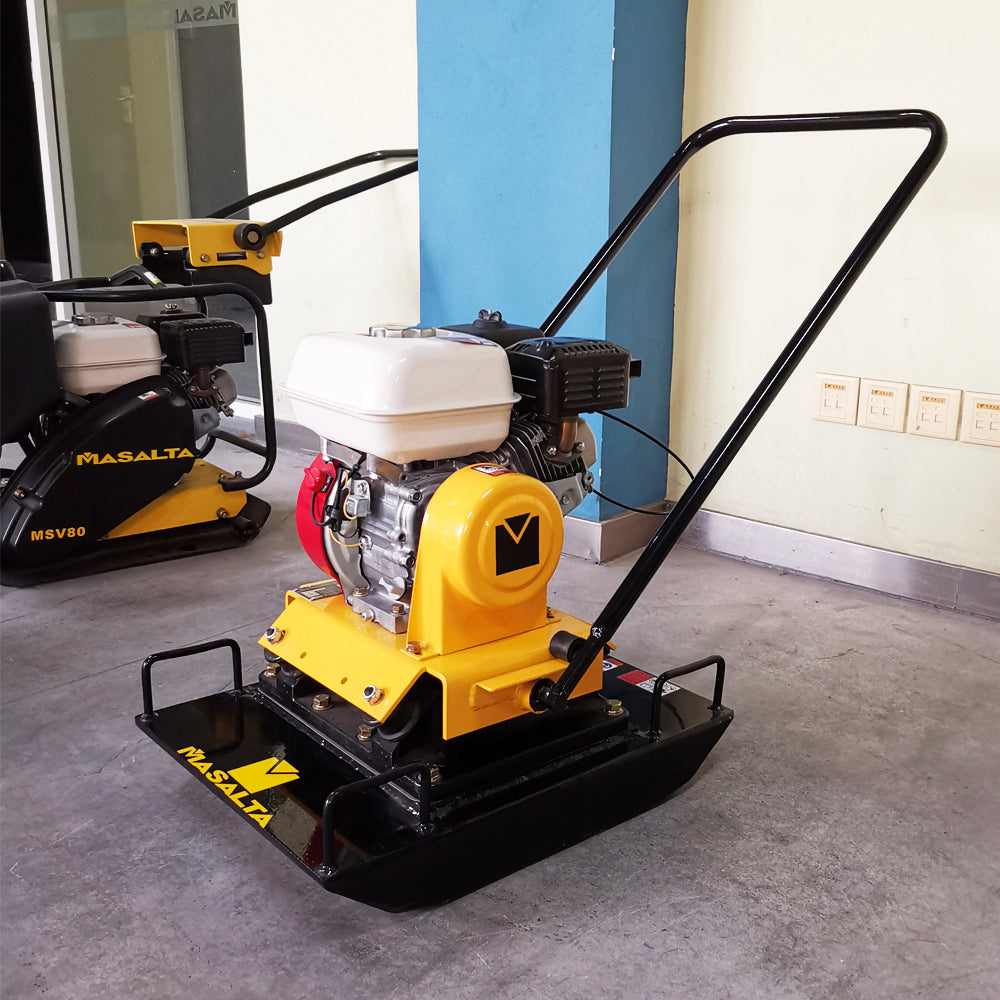

MASALTA Forward Plate Compactor MS100-1 / MS100-2 / MS100-3 / MS100-4 / MS100-5
MASALTA Forward Plate Compactor MS100-1 / MS100-2 / MS100-3 / MS100-4 / MS100-5
Regular price
₱0.00 PHP
Regular price
Sale price
₱0.00 PHP
Taxes included.
Quantity
Couldn't load pickup availability
Powerful design for compaction of sand, gravel, grit and granular materials.
Features
- Vibration-isolated reversible handle for easy operation and reduced operator fatigue.
- Conveniently placed handles.
- Open design reduces dirt build-up.
- Centrally mounted, fully enclosed exciter for an even spread of compactive force over the whole base plate.
- Heavy-duty shock mounts reduce vibration to the upper engine and handle.
- Protective frame is available as optional.
- Throttle control is available as optional.
- Lifting hook (weight 2 kg) is available as optional.
Technical Specification
| Model | MS100-1 | MS100-2 | MS100-3 | MS100-4 | MS100-5 |
| Engine Type | Kama KM173F | Masalta G200F | Robin EX17 | Honda GX160 | Yanmar L48 |
| Energy | Diesel | Petrol | Petrol | Petrol | Diesel |
| Power kW (hp) | 3.7 (5.0) | 4.1 (5.6) | 2.9 (4.0) | 3.6 (4.9) | 3.5 (4.7) |
| Operating Weight, CECE kg (lb) | 104 (230) | 93 (205) | 93 (205) | 93 (205) | 104 (230) |
| Plate Size L x W mm (in) | 610 x 460 (24 x 18) | 610 x 460 (24 x 18) | 610 x 460 (24 x 18) | 610 x 460 (24 x 18) | 610 x 460 (24 x 18) |
| Centrifugal Force kN (lbf) | 19.8 (4451) | 19.8 (4451) | 19.8 (4451) | 19.8 (4451) | 19.8 (4451) |
| Frequency Hz (vpm) | 117 (7000) | 117 (7000) | 117 (7000) | 117 (7000) | 117 (7000) |
| Travel Speed m/min (ft/min) | 27 (89) | 27 (89) | 27 (89) | 27 (89) | 27 (89) |
| Compaction Depth cm (in) | 30 (12) | 30 (12) | 30 (12) | 30 (12) | Not published |
| Efficiency m²/h (ft²/h) | 770 (8300) | 770 (8300) | 770 (8300) | 770 (8300) | Not published |
| Dimensions L x W x H mm (in) | 1100 x 460 x 660 (43 x 18 x 26) | 1100 x 460 x 660 (43 x 18 x 26) | 1100 x 460 x 660 (43 x 18 x 26) | 1100 x 460 x 660 (43 x 18 x 26) | 1100 x 460 x 660 (43 x 18 x 26) |
Manufacturer: MASALTA (Masalta Engineering Co., Ltd., China). Specifications from the MASALTA Catalogue 2026 (printed page 15) and masalta.com.cn. Specifications are subject to change without prior notice.
Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
