MASALTA Walk-Behind Double Drum Vibratory Roller MDRS65K / MDRS65P / MDRS65H

MASALTA Walk-Behind Double Drum Vibratory Roller MDRS65K / MDRS65P / MDRS65H

₱0.00 PHP
₱0.00 PHP
Sale Sold out
Taxes included.

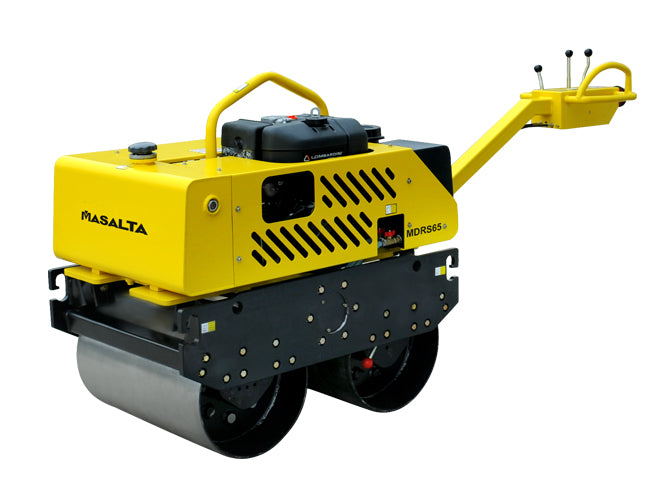

MASALTA MDRS65 is a walk-behind double drum vibratory roller with hydraulically controlled travel, designed for asphalt, soil and granular material compaction. Its compact design makes it ideal for work along curbs and sides and in confined areas.

Features

  • Deadman control lever offers reversing protection.
  • Mechanical parking brake.
  • Ergonomically designed handle lever.
  • Side and curb clearance allow for the closest approach to curbs, walls and other obstacles.
  • Dual smooth drums with beveled edges eliminate marks on ground and asphalt.
  • Low-maintenance and easily accessible engine.
  • 40 L corrosion-free water tank.
  • Two scraper bars ensure a clean drum.
  • High-quality hydraulic pumps and motors.
  • LED working light (MDRS65K and MDRS65P) and hour meter, useful in planning maintenance.
  • Flexible starting options: key (battery) + manual recoil start (MDRS65P) ensures operation even with a dead battery.

Technical Specification

Model MDRS65K MDRS65P MDRS65H
Engine Kubota E75-NB3 Kipor KM186F Honda GX390
Engine power kW (hp) 4.6 (6.3) 6.3 (8.6) 8.7 (11.8)
Energy Diesel Diesel Petrol
Cooling of engine Water Air Air
Operating weight, max kg (lb) 696 (1534) 676 (1490) 671 (1479)
Operating weight, CECE kg (lb) 674 (1485) 652 (1437) 647 (1426)
Drum size, width x diameter mm (in) 650 x 402 (25.6 x 16) 650 x 402 (25.6 x 16) 650 x 402 (25.6 x 16)
Centrifugal force kN (lbf) 11 (2473) 11 (2473) 11 (2473)
Static linear force, CECE N/cm (lb/in) 51 (29.1) 51 (29.1) 51 (29.1)
Frequency Hz (vpm) 55 (3300) 55 (3300) 55 (3300)
Amplitude mm (in) 0.50 (0.02) 0.50 (0.02) 0.50 (0.02)
Starting Key Recoil & Key Recoil
Travel speed range km/h (mph) 0 - 3.6 (0 - 2.2) 0 - 3.6 (0 - 2.2) 0 - 3.6 (0 - 2.2)
Gradability % (degree) 35 (19.3) 35 (19.3) 35 (19.3)
Water tank capacity L (US gal) 40 (10.6) 40 (10.6) 40 (10.6)
Dimensions, L x W x H mm (in) 2378 x 696 x 1130 (94 x 27 x 44) 2378 x 696 x 1130 (94 x 27 x 44) 2378 x 696 x 1130 (94 x 27 x 44)

Manufacturer: MASALTA (Masalta Engineering Co., Ltd., China). Specifications from the MASALTA Catalogue 2026 (printed page 22) and masalta.com.cn. Specifications are subject to change without prior notice.

Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
