MASALTA

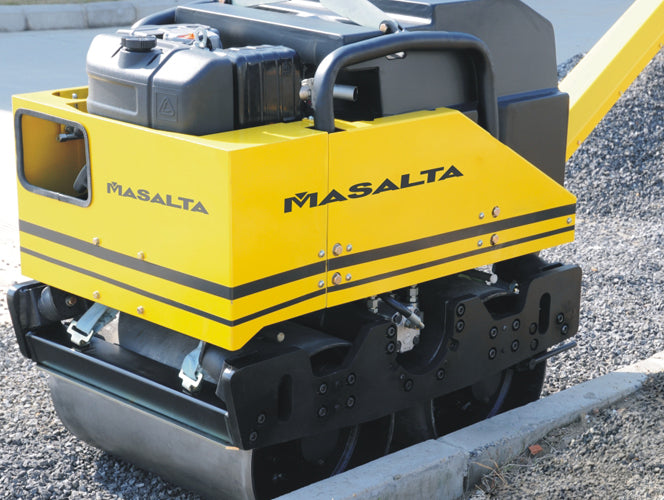

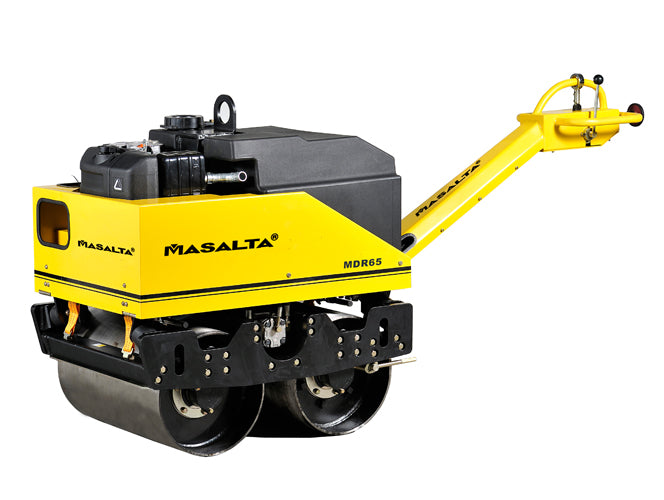

Double Drum Vibratory Roller MDR65

Double Drum Vibratory Roller MDR65

₱0.00 PHP
₱0.00 PHP
Sale Sold out
Taxes included.

Masalta walk behind rollers are designed rugged and suitable for a wide range of applications in the construction industry. The rollers deliver excellent compaction to all types of gravel and asphalt surfaces for large and confined areas.

Features

  • Minimum Overhang offering suitable side and curb clearance
  • Ergonomically designed handle with dead man control offering protection to operator in reversing applications
  • A fully hydraulic-drive system consists of hydraulic pump and hydraulic motors provides infinitely variable working speed
  • Unique clutch/pump drive system provides easy cold weather starting and allows for no-load starting of engine
  • Deadman control lever offers reversing protection
  • Mechanical parking brake
  • Multi position handle for operator comfort and simplified transport
  • Built-in oil cooler will increase the productivity of machine
  • Anti vibration controls ensure non-fatiguing and low HAV
  • Dual smooth drums with beveled edge eliminate mark on the ground and asphalt
  • Vibration controlled by easy to reach on and off switch
  • Two scraper bars on each drum ensure a clean drum when working on asphalt

Technical Specification

Model MDR65L MDR65A
Engine Type Lombardini 15LD440 Hatz 1B40
Power kw(hp) 7.5(10.2) 7.3(9.9)
Weight kg(lb) 718(1583) 721(1590)
Drum Diameter mm(in) 650×Φ404(25.6×Φ16) 650×Φ404(25.6×Φ16)
Static Linear Force N/cm 54 54
Centrifugal Force kN 21 21
Travel Speed km/h(ml/h) 3300(55) 3300(55)
Frequency vpm(Hz) 0-3.6(0-2.24) 0-3.6(0-2.24)
Water tank Capacity L(Gal) 65(14.3) 65(14.3)

Specifications from the manufacturer, MASALTA (masalta.com.cn). Specifications are subject to change without prior notice.

Price: Upon quotation. Request a quote, email [email protected] or call +63 991 487 0007.
